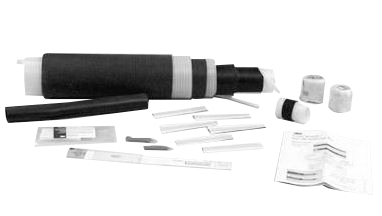

3M Cold Shrink QS-III Splice Kit 5515A-500-CU, 15 kV, Standard, 1/case

SKU: 7100002401
MPN: 7100002401
Lead Time: 15 working days.
UPC: 00054007421368
3M ID: 80611207251
5 Digit UPC: 42136
Shelf Life: 36 Months
Country of Origin: USA
Manufacturer: 3M
$801.19 each
Hurry up! Current stock:
Product Description
The 3M Cold Shrink QS-III Shielded Cable Splices 5513A, 5514A, 5515A and 5516A Series are 15 kV class inline splices for joining tape shield, wire shield, UniShield or longitudinally corrugated (LC) shielded power cables. It is a cold shrink design sized to fit Type MV-90 or Type MV-105 cables with copper, or aluminum conductor sizes ranging from 2 AWG-1000 kcmil (35-500 mm²).The cold shrink splice body is a one-piece molded design made of special formulated silicone rubbers, while the cold shrink jacketing is made of EPDM rubber for physical protection. Each splice manufactured is factory tested to provide reliability. The splices can be used with standard copper (Cu) or aluminum (Al/Cu) inline compression (crimp type) connectors, and can be used for size transitions within the listed kit size range. They are designed to exceed minimum industry test standards, and have a BIL rating of 150 kV (equal to a 25 kV voltage class). The 5513A, 5514A, 5515A and 5516A QS-III splices meet or exceed the 15 kV Voltage Class rating requirements of IEEE 404. Each kit makes one splice. Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.

Extra Details

  • Designed for feeder and distribution circuits, it transitions from shielded to neutral power cables and fits type MV-90 cables
  • Factory-tested partial discharge and AC ensure reliability
  • Inline splice for joining tape shield, wire shield, UniShield or longitudinally corrugated shielded power cables
  • Rated for 15 kV class cables
  • Silicon rubber-splice body provides good high and low temperature performance, and the EPDM rubber jacket offers physical protection
  • Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface
