3M Disc Pad Face Plate 45208, 5 in Soft White, 10 ea/Case

Previous Next

3M Products & Supplies

3M Disc Pad Face Plate 45208, 5 in Soft White, 10 ea/Case

Name: 3M Disc Pad Face Plate 45208, 5 in Soft White, 10 ea/Case
Brand: 3M Products & Supplies
SKU: 7000120521
Price: 215.88 USD
Availability: InStock

Sold As: 10-Pack

SKU: 7000120521

MPN: 7000120521

Stock Item: Stock items typically ship within 2-3 business days

UPC: 00051144452088

3M ID: 60980108330

5 Digit UPC: 45208

Shelf Life: 3650 Days

Country of Origin: USA

Manufacturer: 3M

Size: 5 in6.9 in

Color: White

$215.88 ($21.59 / Count)

Hurry up! Current stock:

Quantity:

Product Description
Extra Details
Data Sheets

Product Description

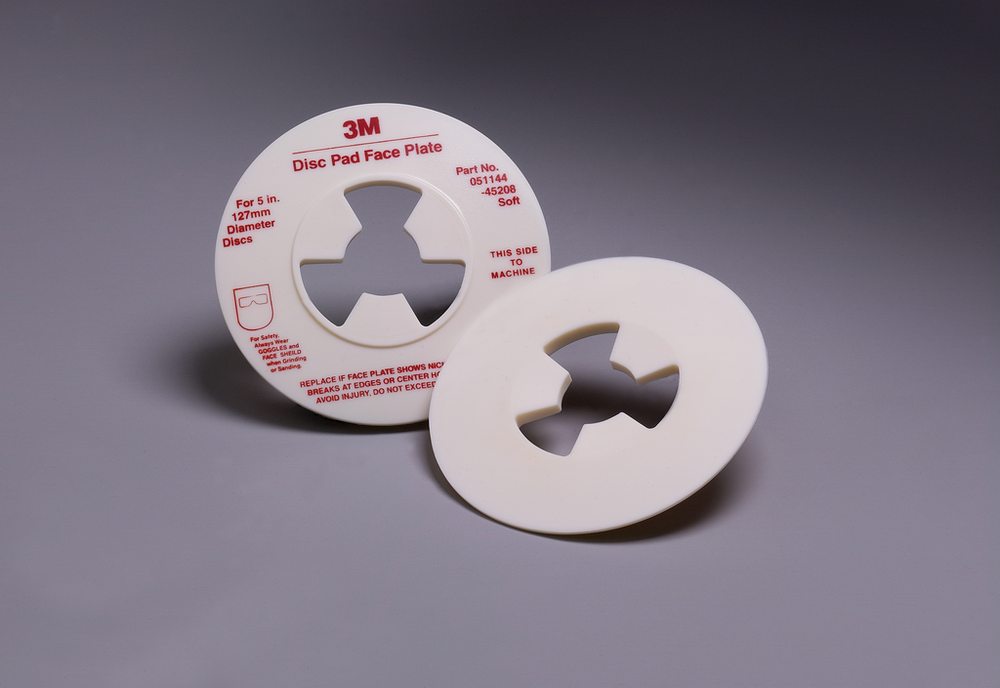

3M Disc Pad Face Plate backs a same size fiber disc (sold separately) to provide firm support and the force required for grinding applications. It is used in conjunction with a disc pad hub (sold separately), which attaches to the power tool, and held into place along with the appropriate disc using either a retainer nut (sold separately).

This assembly allows the 3M Disc Pad Face Plate to be easily changed without removing the disc pad hub, allowing the operator to use a single tool for multiple applications from heavy grinding to finishing a workpiece.

Some face plates have ribbing on the bottom face. Ribbed face plates provide additional force when needed for optimal fracturing of the abrasive mineral. By reducing the area of contact, or pressure per square inch (PSI), ribbed face plates increase the grinding pressure of the abrasive with the same amount of operator effort, and extend disc life when dulling is a problem.

Choose a plate with the level of firmness needed for the application—a lighter density face plate for lighter weight grinding applications, and a harder density face plate for more heavyweight grinding applications. Using the correct face plate for the application ensures that the abrasive mineral will fracture as it should, maximizing the life of the abrasive. The plate comes in one of four different colors that indicate the density so the correct plate can be easily identified in the workroom: red = extra hard (for heavy grinding with the coarsest grades), black = hard (for heavy metal removal, large welds, etc.), gray = medium (for general purpose grinding and finishing), and white = soft (for finishing operations on flat or contoured surfaces).

Designed for use with a 3M Disc Pad Hub
Plate accommodates a fiber disc of equal diameter
Plate color indicates disc density for easy identification in the workroom
Various flexibilities support grinding applications ranging from lightweight to heavy-duty
