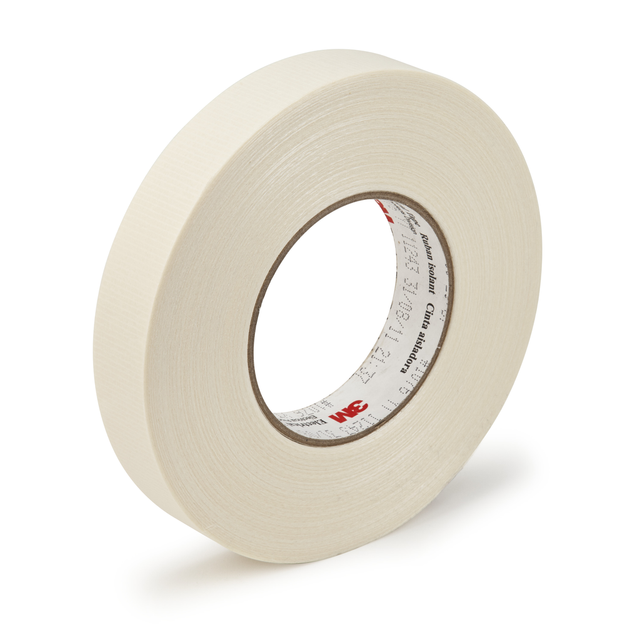

Electrical Filament Tape 1039. Angle left photo.
Electrical Filament Tape 1039. Angle left photo.
Electrical Filament Tape 1039. Angle left photo.
Previous Next

3M Products & Supplies

3M Filament-Reinforced Electrical Tape 1039, Bulk, 3 in paper core, 1/4 in x 60 yds, 144 Rolls/Case

Sold As: 144-Pack
SKU: 7010351728
MPN: 7010351728
Lead Time: 5 working days.
UPC: 00051128604762
3M ID: 80611607971
5 Digit UPC: 60476
Shelf Life: 1825 Days
Country of Origin: USA
Manufacturer: 3M
Size: 0 NP
Color: White
$981.12 ($6.81 / Count)
Hurry up! Current stock:
Product Description
3M Filament Reinforced Electrical Tape 1039 is a 7 mil thick, solvent resistant, electrical filament tape that has a polyester film/glass filament scrim backing and a chemical resistant, acrylic adhesive. The tape is 600V rated and withstands a temperature range of 40 to 266 F ( 40 to 130 C).3M Tape 1039 is designed for dry type transformers, motor winding and low voltage applications that require dielectric and mechanical strength. This conformable tape offers excellent dielectric strength, low stretch and high tensile strength. The unique coating on this tape supports excellent bonding with diamond paper, insulation epoxy during the transformer baking process. The tape is ideal for anchoring end turn tapping and lead wires to banding coils and it provides stiffness for excellent handling during coil winding operations. UL Listed and RoHS 2011/65/EU Compliant.

Extra Details

  • Acrylic adhesive for excellent adherence and polyester film/glass filament scrim backing for outstanding electrical characteristics
  • Offers good initial adhesion to magnet wire, strip copper and insulation materials
  • Provides stiffness for excellent handling during coil-winding operations
  • Suitable for anchoring end-turn tapping and lead wires to banding coils
  • UL Listed and RoHS 2011/65/EU Compliant
  • Withstands a temperature range of -40 to 266 °F (-40 to 130 °C)
  • Woven, glass mat provides additional reinforcement
