3M Products & Supplies

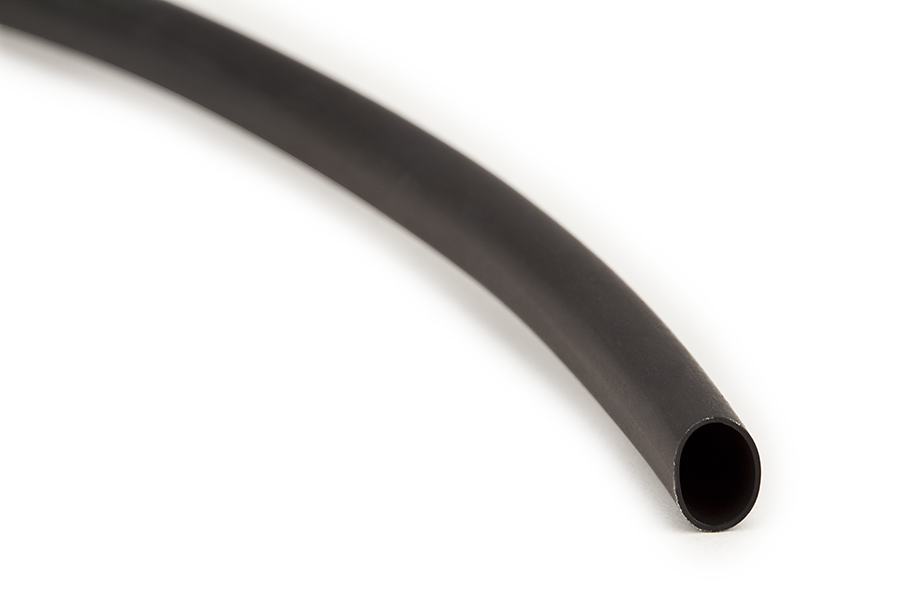

3M™ Heat Shrink Thin-Wall Tubing FP-301VW 4-Black-50`: 50 ft spool length, 50 linear ft/box, 1 Roll/Case - 7010396603

Sold As: 1000-Pack
SKU: 7010396603
MPN: 7010396603
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007569985
3M ID: 80610649586
5 Digit UPC: 56998
$29,200.73 ($29.20 / Count)
Hurry up! Current stock:

Product Description

3M™ FP-301VW Heat Shrink Tubing is a thin wall tubing that provides a balance of electrical, physical and chemical properties. This tubing has a 2:1 shrink ratio and provides insulation for 600V rated applications. It has highly flame retardant, flexible polyolefin construction for moisture seal protection.

Features

  • Balances electrical, physical and chemical properties for various industrial and military applications
  • Suitable for flame-retardant applications requiring UL VW-1 and CSA OFT, fire-resistant wiring
  • Withstands temperatures of -67 to 275 degrees F (-55 to 135 degrees C)
  • Made of black flexible polyolefin
  • Rated for 600V applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink (Imperial) UOMin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UomDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)50.0
Elongation UOMdB
Product ColorBlack
Inner Diameter After Shrink (Metric)50.8
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)4.0
Inner Diameter After Shrink (Imperial)2.0
Maximum Operating Temperature (Celsius)135.0
Mil SpecAMS-DTL-23053/5, Class 3
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric)101.6
Shrink Ratio2:1
UL File NumberE-39100
Minimum Expanded Tubing I. D. UOMin
Flame RetardantYes
Tubing TypeSingle (Thin) Wall
Non-CorrosiveYes
Minimum Expanded Tubing I. D.4.0
Overall Length (Imperial) UOMft
MaterialHighly Flame-retardant, Flexible Polyolefin
