3M Products & Supplies

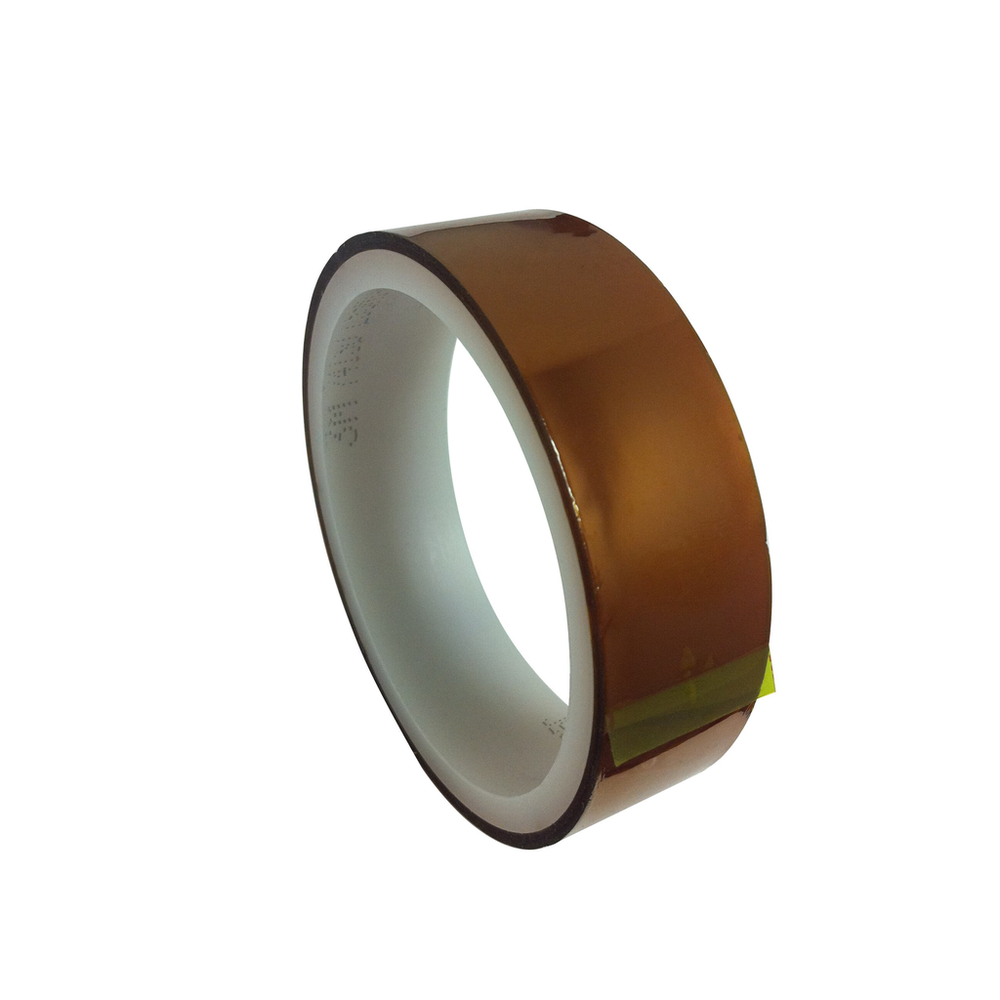

3Mâ„¢ Low-Static Non-Silicone Polyimide Film Tape 7419, 25 in x 36 yds, 1 Roll/Case

SKU: 7010370732
MPN: 7010370732
Lead Time: 11 working days.
UPC: 00051111897461
3M ID: 70004031624
5 Digit UPC: 89746
Shelf Life: 548 Days
Country of Origin: USA
Manufacturer: 3M
Size: 25 in
Thickness: 1.8 mil
Color: Amber
$2,307.52 each
Hurry up! Current stock:
Product Description
3M Low Static, Non Silicone Polyimide Film Tape 7419 with DuPont Kapton polyimide film and acrylic adhesive used for PCB solder masking and other high temperature applications. Low Static.This high temperature tape utilizes a non-silicone adhesive formulation which eliminates concerns about silicone contamination on the masked areas. It also has designed in static dissipative performance attributes and produces very low static charge during unwind and removal making it desirable in static sensitive applications. 3M tape 7419 has been designed to remove cleanly from a variety of typical electronic substrates including FR-4, polyimide, gold, copper, and silicon after high temperature processing.

Extra Details

  • Non-silicone adhesive formulation eliminates the potential for silicone contamination which can interfere with subsequent bonding or conformal coating operations.
  • Product is wound on a polyethylene tape core
  • Specially formulated acrylic adhesive is resistant to typical solder mask temperatures for short periods of time
  • The high temperature acrylic adhesive also has excellent chemical resistance and should be considered for demanding chemical masking applications.
  • The high temperature acrylic adhesive also has excellent chemical resistance and should be considered for demanding chemical masking applications

Data Sheet

  1. Tech Data Sheet
