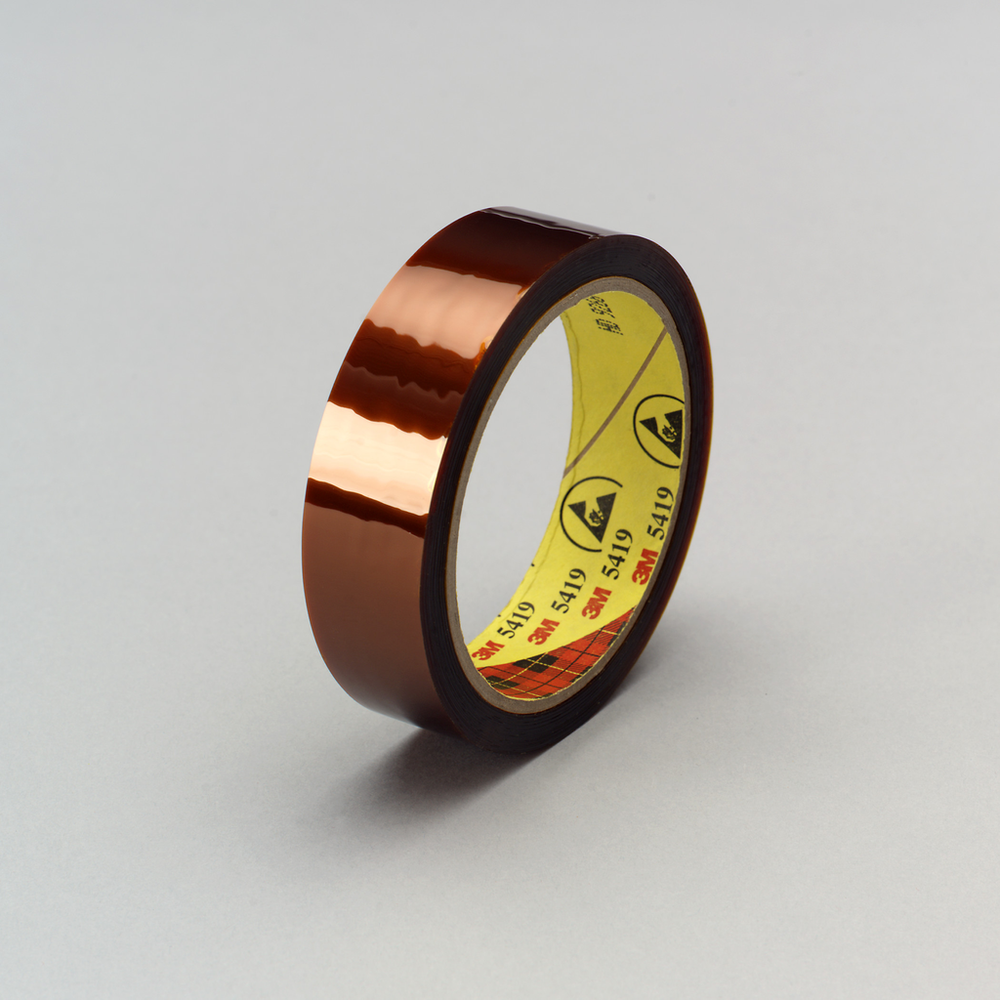

3M 5419 Electronic Tape
3MT Low-Static Polyimide Film Tape 5419 Gold, 2.7 Mil, 1 In x 36 Yd, Paper Core, 9 Rolls/Case, Boxed
3M 5419 Electronic Tape
3MT Low-Static Polyimide Film Tape 5419 Gold, 2.7 Mil, 1 In x 36 Yd, Paper Core, 9 Rolls/Case, Boxed
3M 5419 Electronic Tape
3MT Low-Static Polyimide Film Tape 5419 Gold, 2.7 Mil, 1 In x 36 Yd, Paper Core, 9 Rolls/Case, Boxed
Previous Next

3M Products & Supplies

3MT Low-Static Polyimide Film Tape 5419 Gold, 2.7 Mil, 1 In x 36 Yd, Paper Core, 9 Rolls/Case, Boxed

Sold As: 9-Pack
SKU: 7000144792
MPN: 7000144792
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200648663
3M ID: 70016050687
5 Digit UPC: 64866
Shelf Life: 1095 Days
Country of Origin: USA
Manufacturer: 3M
Size: 1 in
Thickness: 2.7 mil
Color: Gold
$742.61 ($82.51 / Count)
Hurry up! Current stock:
Product Description

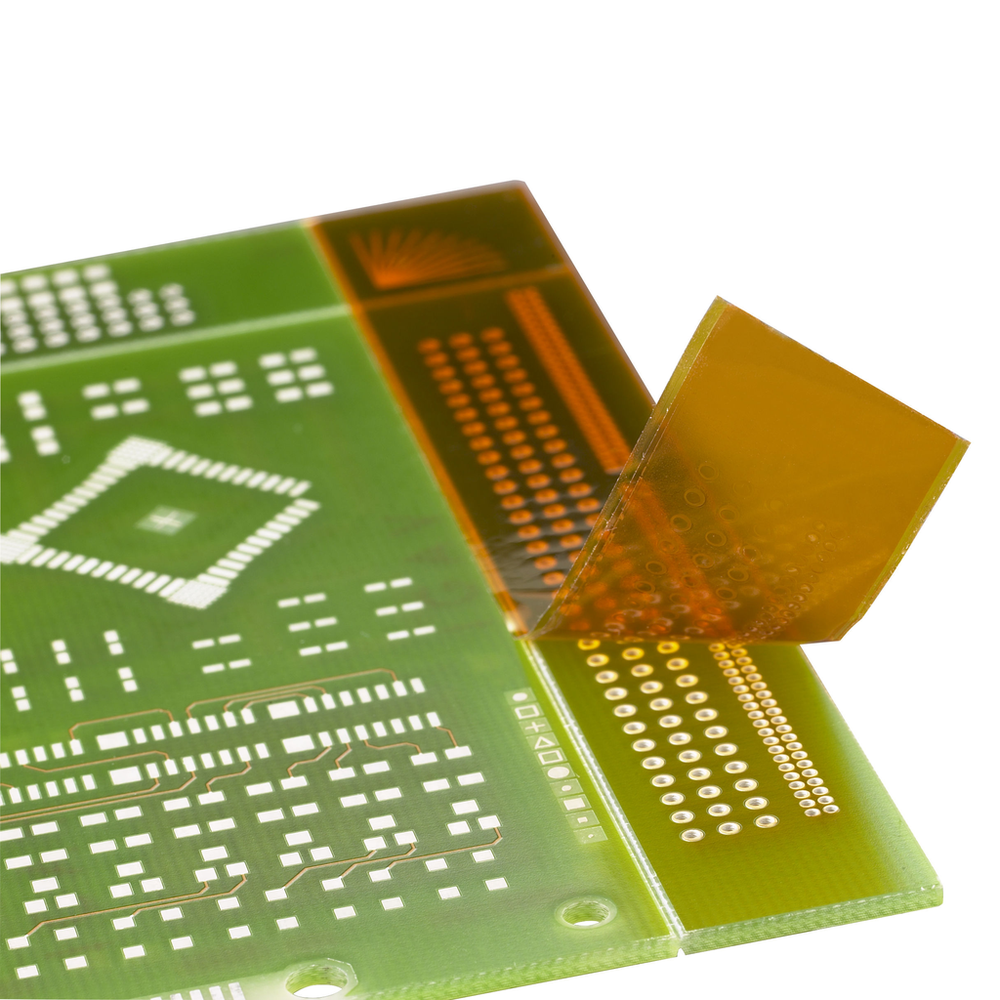

3M Low Static Polyimide Film Tape 5419 with DuPont Kapton polyimide film and silicone adhesive used for PCB solder masking and other high temperature applications. Low Static.Employs a proprietary technology that results in extremely low electrostatic discharge at unwind and removal from the PWB. Conventional polyimide tapes can typically generate over 10,000 volts during use which can damage board mounted electronic components. 3M tape 5419 overcomes this problem without any of the typical drawbacks of conventional "anti-static" or "static-free" tapes (e.g., variable adhesion and opaqueness). Halogen Free Definition: "Halogen Free" refers to the International Electrochemical Commission’s Definition, IEC 61249-2-21, which sets the limits of: 900 ppm maximum chlorine; 900 ppm maximum bromine; 1500 ppm maximum total halogens

Extra Details

  • Available on cardboard or polyethyelene core
  • DuPont Kapton polyimide film does not soften at elevated temperatures, thus the film provides an excellent release surface at elevated temperatures
  • No rework required, enabling high productivity
  • Protects surfaces helping reduce replacement parts

Data Sheet

  1. Tech Data Sheet
