3M Polycarbonate Ultra Precision Carrier 3000UB, Prototype, 8 mm x 500 m

Name: 3M Polycarbonate Ultra Precision Carrier 3000UB, Prototype, 8 mm x 500 m
Brand: 3M Products & Supplies
SKU: 7100208848
Price: 601.95 USD
Availability: InStock

Sold As: 2-Pack

SKU: 7100208848

MPN: 7100208848

Lead Time: 58 working days.

UPC: 00051111906729

3M ID: XA006806849

5 Digit UPC: 90672

Shelf Life: 1825 Days

Country of Origin: Singapore

Manufacturer: 3M

$601.95 ($300.98 / Count)

Hurry up! Current stock:

Quantity:

Product Description
Extra Details

Product Description

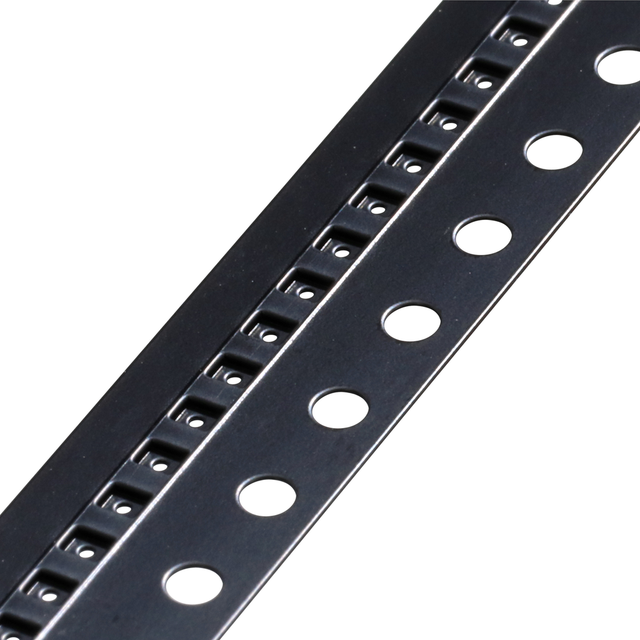

3M Polycarbonate Ultra Precision Carrier 3000UB is a black, splice free, polycarbonate carrier with typical surface resistivity of E5 ohms/sq.3M carrier 3000UB is an ultra precision carrier designed to meet the demanding needs of smaller and thinner static sensitive components that require tighter pocket dimensional tolerance and cleanroom compatible requirements.

3M carrier 3000UB is cleaned and packaged in a Class 10,000 cleanroom environment
Available in width of 8 mm in planetary or level winding format
Compatible with 3M Pressure Sensitive Adhesive Cover Tapes, 3M Universal Cover Tape and 3M Heat Activated Adhesive Cover Tapes with good sealing and peeling performance
Good impact strength and resistance for improved component protection
Lower shrinkage percentage than such materials as polyester providing stable pocket dimension after formation
Recommended for small static-sensitive components requiring tight precision and cleanroom applications, such as packages of 1 mm x 1 mm or below
Same materials and physical characteristics as 3M Polycarbonate Carrier 3000
black, splice free, polycarbonate carrier with a typical surface resistivity at E5 ohms/sq., and precisely formed pockets to ensure component fit per ANSI/EIA guidelines
Tight pocket dimensional tolerance at +/- 0.03 mm with a small pocket hole of 0.12 mm - 0.2 mm featuring small draft angle and flat pocket bottom to contain component securely in pocket with less risk of tilting, flipping and rotating
