3M Polycarbonate Ultra Precision Carrier 3000UP

3M Polycarbonate Ultra Precision Carrier (UPC) 3000UP, Proto 8MM 500M
13BPR6-4 SGP

Previous Next

3M Products & Supplies

3M Polycarbonate Ultra Precision Carrier (UPC) 3000UP, Proto 8MM 500M 13BPR6-4 SGP

Name: 3M Polycarbonate Ultra Precision Carrier (UPC) 3000UP, Proto 8MM 500M 13BPR6-4 SGP
Brand: 3M Products & Supplies
SKU: 7100198481
Price: 644.25 USD
Availability: InStock

Sold As: 3-Pack

SKU: 7100198481

MPN: 7100198481

Lead Time: 58 working days.

UPC: 08887862347304

3M ID: XA006805098

5 Digit UPC: 34730

Shelf Life: 1825 Days

Country of Origin: Singapore

Manufacturer: 3M

$644.25 ($214.75 / Count)

Hurry up! Current stock:

Quantity:

Product Description
Extra Details

Product Description

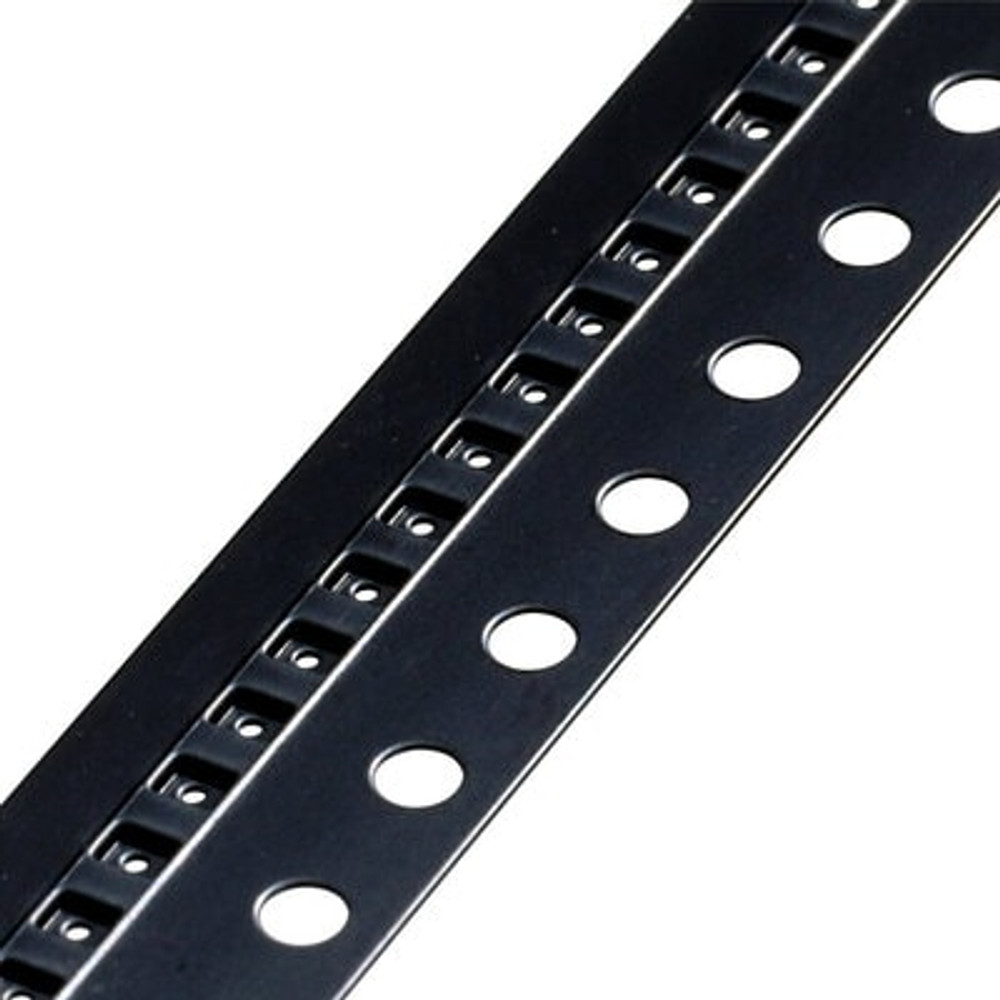

3M Polycarbonate Ultra Precision Carrier 3000UP is a black, splice free, polycarbonate carrier with typical surface resistivity of E5 ohms/sq.

Extra Details

Available in width of 8 mm in planetary or level winding format
Compatible with 3M Pressure Sensitive Adhesive Cover Tapes and 3M Heat Activated Adhesive Cover Tapes with good sealing and peeling performance
Good impact strength and resistance for improved component protection
Lower shrinkage percentage than such materials as polyester providing stable pocket dimension after formation
Recommended for small static-sensitive components, such as packages of 1 mm x 1 mm or below
Same materials and physical characteristics as 3M Polycarbonate Carrier 3000
black, splice free, polycarbonate carrier with a typical surface resistivity at E5 ohms/sq., and precisely formed pockets to ensure component fit per ANSI/EIA guidelines
Tight pocket dimensional tolerance at +/- 0.03 mm with a small pocket hole of 0.12 mm - 0.2 mm featuring small draft angle and flat pocket bottom to contain component securely in pocket with less risk of tilting, flipping and rotating
