3M Resin Bond Diamond Wheels and Tools, 1A1,16X7.874X8,X=3/4 D151 663BL
- MMMRBDW27105

Previous Next

3M Products & Supplies

3M Resin Bond Diamond Wheels and Tools, 1A1,16X7.874X8,X=3/4 D151 663BL - MMMRBDW27105

Name: 3M Resin Bond Diamond Wheels and Tools, 1A1,16X7.874X8,X=3/4 D151 663BL - MMMRBDW27105
Brand: 3M Products & Supplies
SKU: 7010481787
Price: 12335.29 USD
Availability: InStock

SKU: 7010481787

MPN: 7010481787

Lead Time: 40 working days.

UPC: 00051141311036

3M ID: 60440264616

5 Digit UPC: 31103

Country of Origin: USA

Manufacturer: 3M

$12,335.29 each

Hurry up! Current stock:

Quantity:

Product Description
Extra Details
Data Sheets

Product Description

The 3M Diamond Resin Wheel 663BK is used in the production and sharpening of carbide cutting tools. This general purpose wheel is designed to give you the best form retention and the fastest cut rate when used with water based lubricants.

Designed for Precision

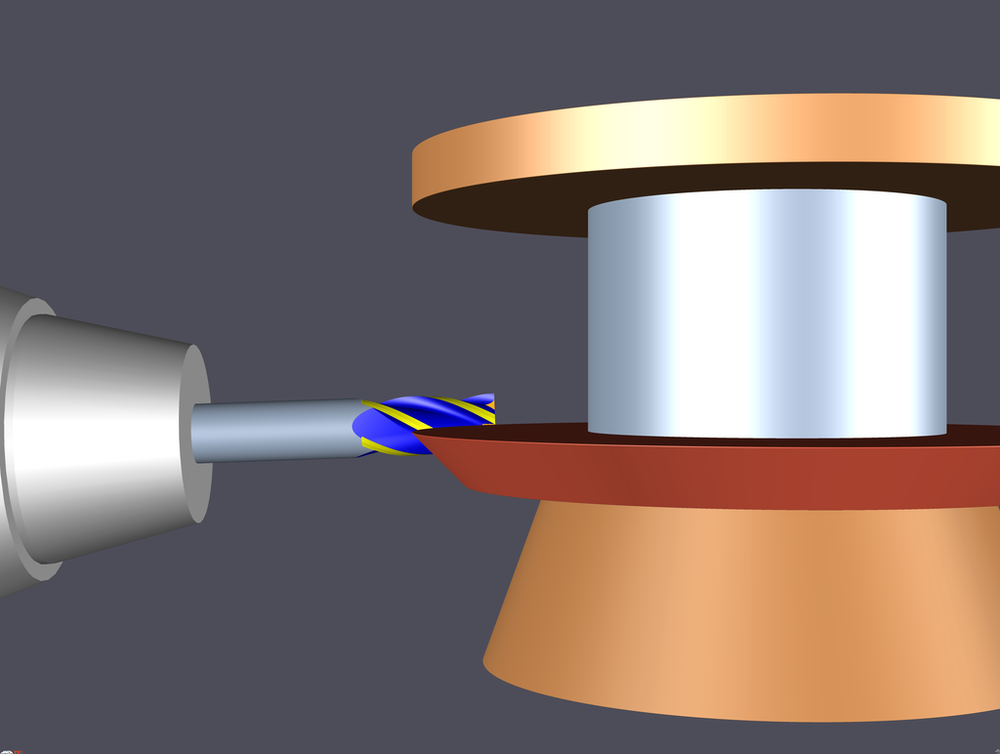

Our resin bonded diamond wheels are designed for high performance grinding on carbide. The 3M Diamond Resin Wheel 663BK line is specifically designed for the production and sharpening of cutting tools, including end work, gashing and cutting primary and secondary relief edges. Primary relief involves removing material directly behind the cutting edge to enhance chip clearance. For secondary relief, a slight bevel is ground next to the primary relief. End work grinds a small relief angle on the tip of the tool, while gashing adds a slot along the cutting face to allow for chip flow. Each of these processes require the highest level of quality that our 3M Diamond Resin Wheel 663BK provides.

High Quality Bonding
These superabrasive wheels also use a resin bonding that is specially designed to resist thermal and chemical deterioration, which can occur during high speed grinding. This R-rated bond is balanced to deliver both good material removal rates and hold form when grinding materials like tungsten carbide or where tight tolerances are required. Water based coolant is required when using this wheel.

The Right Wheels for the Job
3M provides a broad portfolio of superabrasive wheels used for your round tool relief and clearance angle applications. They feature a variety of metal cores, including aluminum, steel, composite and copper, and can be cut with custom arbor holes to fit customer specifications. From short runs and re-sharpening to “lights-out” and long production runs, 3M has the wheel design to meet your needs.

Arbor holes are made to customer specifications
Designed to provide high form retention for precise cutting
Diamond abrasive capable of removing stock or grinding forms on tungsten carbide, cemented carbide and ceramic work pieces
Durable resin bond resists deterioration from heat, extending the life of the abrasive wheel
Various wheel designs are available for gashing, primary and secondary relief and end work
