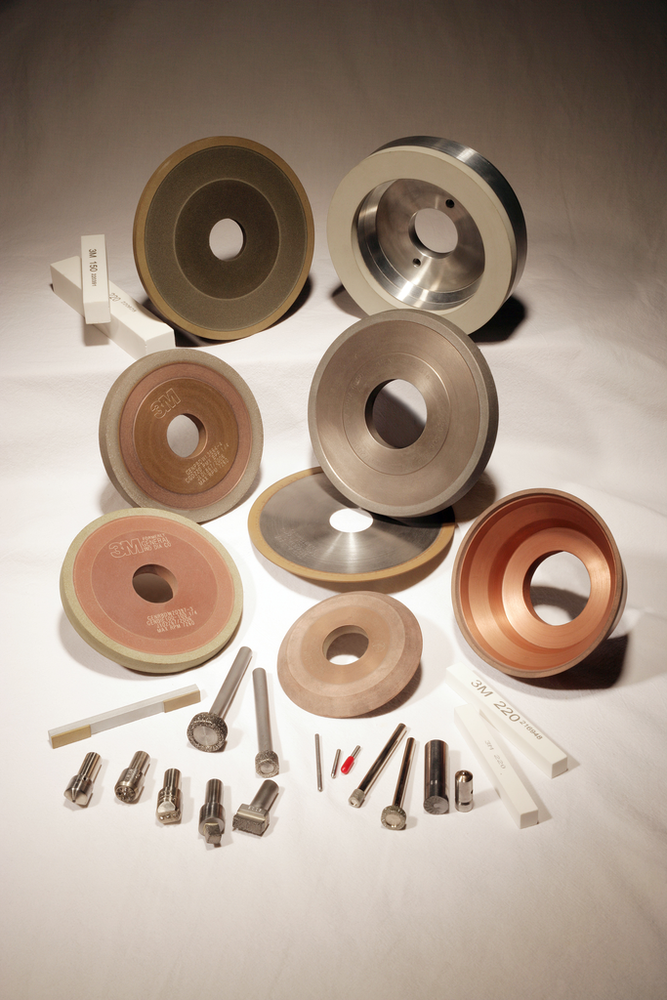

3M Resin Bond Diamond Wheels and Tools, 1A1, 3X3/4X1-1/4, X=1/4 D220 684BN - MMMRBDW22975

SKU: 7010492594
MPN: 7010492594
Lead Time: 40 working days.
UPC: 00076308244637
3M ID: 65500363422
5 Digit UPC: 24463
Country of Origin: USA
Manufacturer: 3M
$407.87 each
Hurry up! Current stock:
Product Description
3M Diamond Resin Wheel 684BN is used in the production and sharpening of carbide cutting tools. This general purpose wheel is designed to give you the best form retention and extended life. Designed for use with water based lubricants.

Designed for Precision
Our resin bonded diamond wheels are designed for high performance grinding on carbide. The 3M Diamond Resin Wheel 684BN line is specifically designed for the production and sharpening of cutting tools, including end work, gashing and cutting primary and secondary relief edges. Primary relief involves removing material directly behind the cutting edge to enhance chip clearance. For secondary relief, a slight bevel is ground next to the primary relief. End work grinds a small relief angle on the tip of the tool, while gashing adds a slot along the cutting face to allow for chip flow. Each of these processes require the highest level of quality that our 3M Diamond Resin Wheel 684BN provides.

High Quality Bonding
These superabrasive wheels also use a resin bonding which are specially designed to resist thermal and chemical deterioration, which can occur during high speed grinding. This T rated bond is ideal for applications where form holding and long wheel life are critical. These wheels are designed for use with water based lubricants.

The Right Wheels for the Job
3M provides a broad portfolio of superabrasive wheels used for your round tool relief and clearance angle applications. They feature a variety of metal cores, including aluminum, steel, composite and copper, and can be cut with custom arbor holes to fit customer specifications. From short runs and re-sharpening to “lights-out” and long production runs, 3M has the wheel design to meet your needs.

Extra Details

  • Arbor holes are made to customer specifications
  • Designed to provide high form retention for precise cutting
  • Diamond abrasive capable of cutting or shaping cemented carbide, carbons and ceramics
  • Durable resin bond resists deterioration from heat, extending the life of the abrasive wheel
  • Various wheel designs are available for gashing, primary and secondary relief and end work
