3M Products & Supplies

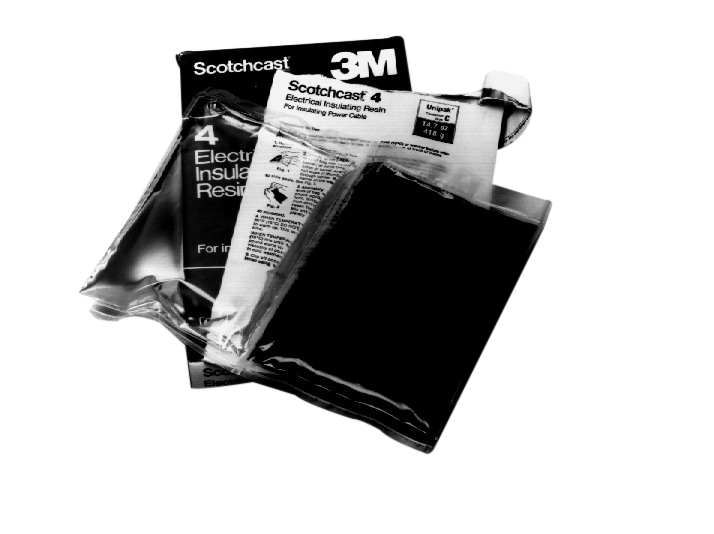

3M Scotchcast Electrical Insulating Resin 4N-D, 10/Case

Sold As: 10-Pack
SKU: 7100180522
MPN: 7100180522
Lead Time: 8 working days.
UPC: 00051128613528
3M ID: 80611627664
5 Digit UPC: 61352
Shelf Life: 36 Months
Country of Origin: USA
Manufacturer: 3M
$968.35 ($96.84 / Count)
Hurry up! Current stock:
Product Description
3M Scotchcast Electrical Insulating Resin 4N, with nozzel and guard bag, is a 2 part, insulating and encapsulating, epoxy based, liquid resin that generates its own heat to cure. Compatible with solid/synthetic cable insulations and jackets, this resin makes an excellent insulator and sealer for cable splicing.3M Scotchcast Electrical Resin 4N A is a multi purpose moisture sealing resin that remains stable, even at elevated temperatures. The resin bonds to itself and to nearly all modern cable jackets. It allows you to splice solid dielectric and oil filled cables up to 8 kV and to jacket high voltage splices. This resin is used in 82 H, 82 B1, 85 14CP and 90 B1 Series splice kits. ASTM Approved and RoHS 2011/65/EU Compliant‎.

Extra Details

  • 80 Shore D hardness
  • Elongates 4% longer than its original size for easy insulation or wrapping
  • Has 16-minute gel time at 73 ?? (23 ??)
  • Useful for splicing solid dielectric and oil-filled cables up to 8 kV
  • Withstands a temperature range of 32 to 266 ?? (0 to 130 ??)
  • Withstands a voltage rating of 8 kV or less (for splicing solid dielectric and oil-filled cables)

Data Sheet

  1. Safety Data Sheet
