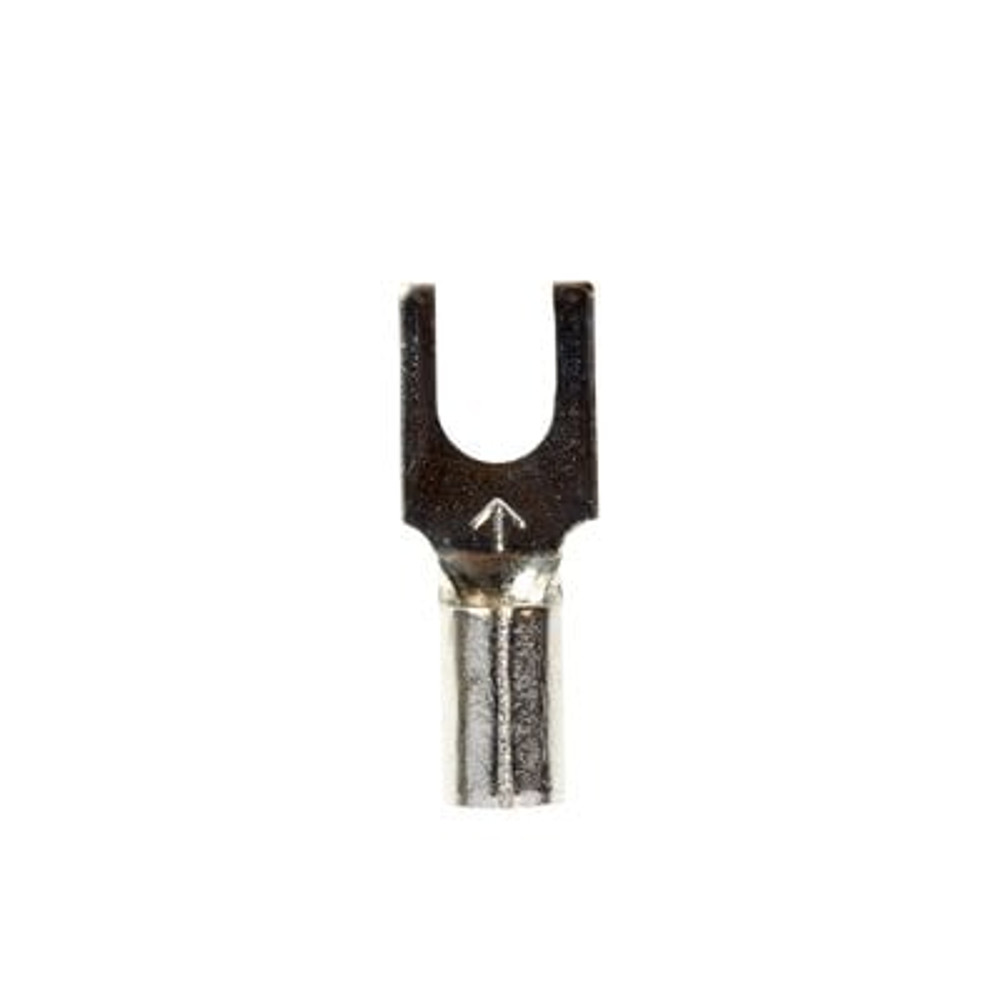

Scotchlok M14-6FB/SK Block Fork Non-Insulated Brazed Seam
Scotchlok M14-6FB/SK Block Fork Non-Insulated Brazed Seam
Scotchlok M14-6FB/SK Block Fork Non-Insulated Brazed Seam
Previous Next

3M Products & Supplies

3M Scotchlok Block Fork Non-Insulated, 100/bottle, M14-6FB/SX, suitable for use in a terminal block, 500/Case

Sold As: 500-Pack
SKU: 7100165308
MPN: 7100165308
Lead Time: 10 working days.
UPC: 00051128589694
3M ID: 80611466154
5 Digit UPC: 58969
Country of Origin: USA
Manufacturer: 3M
Size: 0.25 in
$248.78 ($0.50 / Count)
Hurry up! Current stock:
Product Description
3M Scotchlok Small Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands temperatures of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3M Scotchlok Small Block Fork Terminal has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. The sides of the terminal lie flat against the barrier portion of the terminal block to provide electrical contacts. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

Extra Details

  • 100/carton, 500/case
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Accommodates wire sizes 16 to 14 AWG
  • Beveled mouth offers easy insertion of wires
  • Electrolytic copper construction offers good conductivity
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Stud size #6
  • Suitable for use in a terminal block
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals

Data Sheet

  1. Tech Data Sheet
  2. Safety Data Sheet
