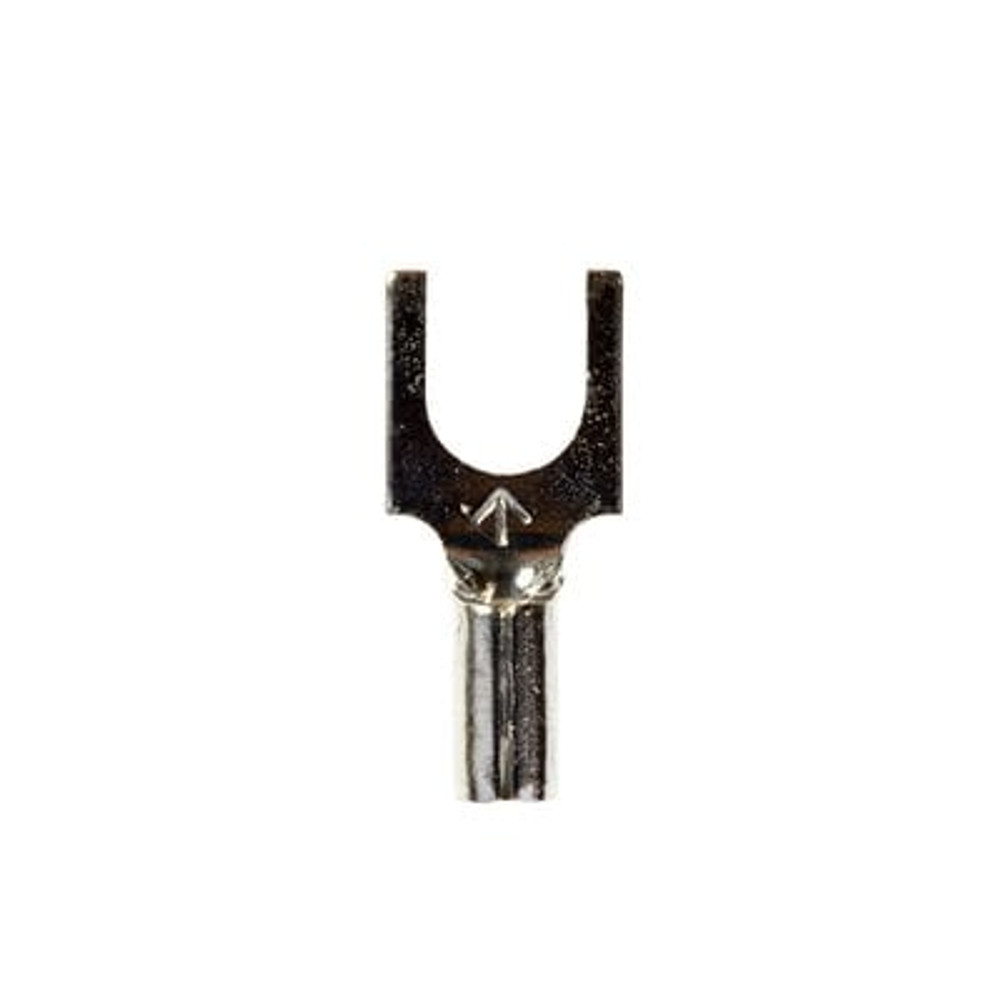

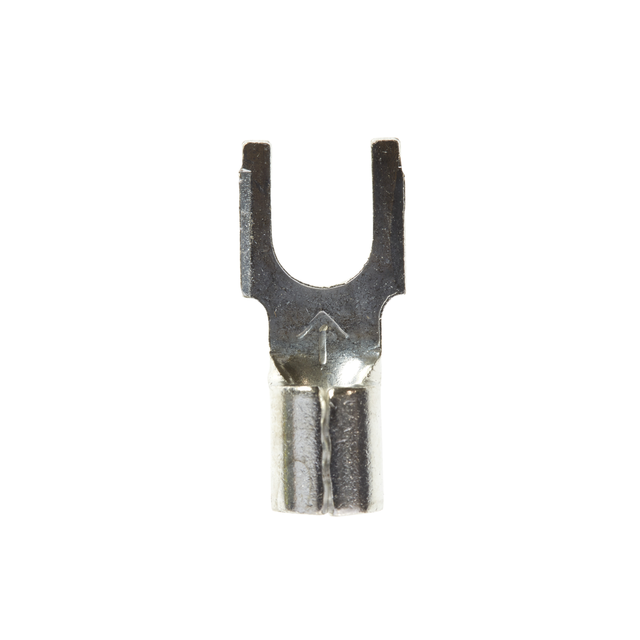

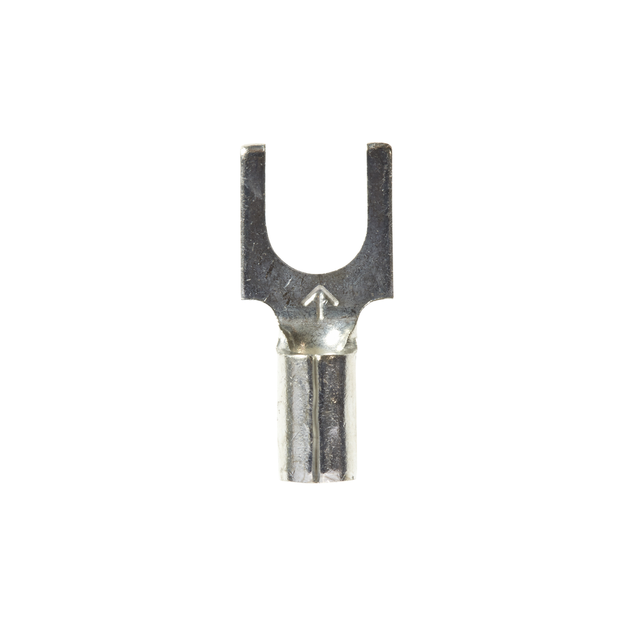

3M Scotchlok Block Fork, Non-Insulated Butted Seam MU18-10FBK, Stud Size 10, suitable for use in a terminal block, 1000/Case

Sold As: 1000-Pack
SKU: 7100163947
MPN: 7100163947
Lead Time: 8 working days.
UPC: 00054007012016
3M ID: 80610038194
5 Digit UPC: 1201
Country of Origin: USA
Manufacturer: 3M
Size: 0.3 in
$152.66 ($0.15 / Count)
Hurry up! Current stock:
Product Description
3M Scotchlok Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position, and it withstands temperatures of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3M Scotchlok Block Fork Terminal has a non-insulated, butted-seam barrel with a beveled mouth to guide the wire into position easily. The sides of the terminal lie flat against the barrier portion of the terminal block to provide electrical contacts. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

Extra Details

  • 1000/case
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Accommodates wire sizes 22 to 18 AWG
  • Beveled mouth offers easy insertion of wires
  • Electrolytic copper construction offers good conductivity
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Stud size #10
  • Suitable for use in a terminal block
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
