Scotchlok MNHU18-250DFIK Female Disconnect Heat Shrink Nylon
Scotchlok MNHU18-250DFIK Female Disconnect Heat Shrink Nylon
Scotchlok MNHU18-250DFIK Female Disconnect Heat Shrink Nylon
Previous Next

3M Products & Supplies

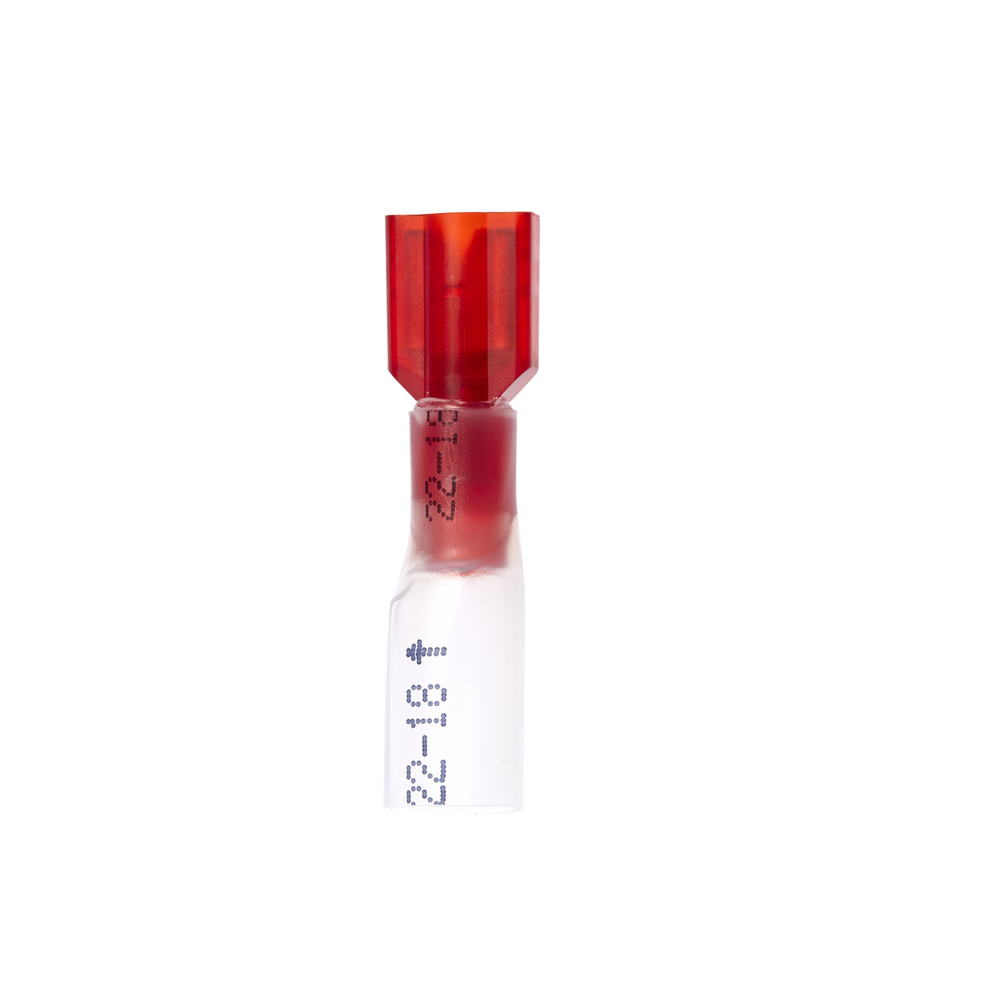

3M Scotchlok Female Disconnect, Heat Shrink Fully Nylon Insulated Butted Seam MNHU18-250DFIK, 22-18 AWG, 250/Case

Sold As: 250-Pack
SKU: 7100164285
MPN: 7100164285
Lead Time: 8 working days.
UPC: 00054007063551
3M ID: 80610530380
5 Digit UPC: 6355
Country of Origin: USA
Manufacturer: 3M
Size: 0.23 in0.37 in
$204.96 ($0.82 / Count)
Hurry up! Current stock:
Product Description
3M Scotchlok Color-Coded Heat Shrink Female Disconnect Terminal has dents and rolled edges for easy disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C) and its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.3M Scotchlok Color-Coded Heat Shrink Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. This versatile terminal has a butted-seam barrel that is covered by a see-through, pre-insulated transparent tubing. The tubing provides seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

Extra Details

  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Mates with 0.25-in wide male tab
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)

Data Sheet

  1. Tech Data Sheet
  2. Safety Data Sheet
