Scotchlok MVU18-156DMK-A Male Disconnect Vinyl Insulated
Scotchlok MVU18-156DMK-A Male Disconnect Vinyl Insulated
Scotchlok MVU18-156DMK-A Male Disconnect Vinyl Insulated
Previous Next

3M Products & Supplies

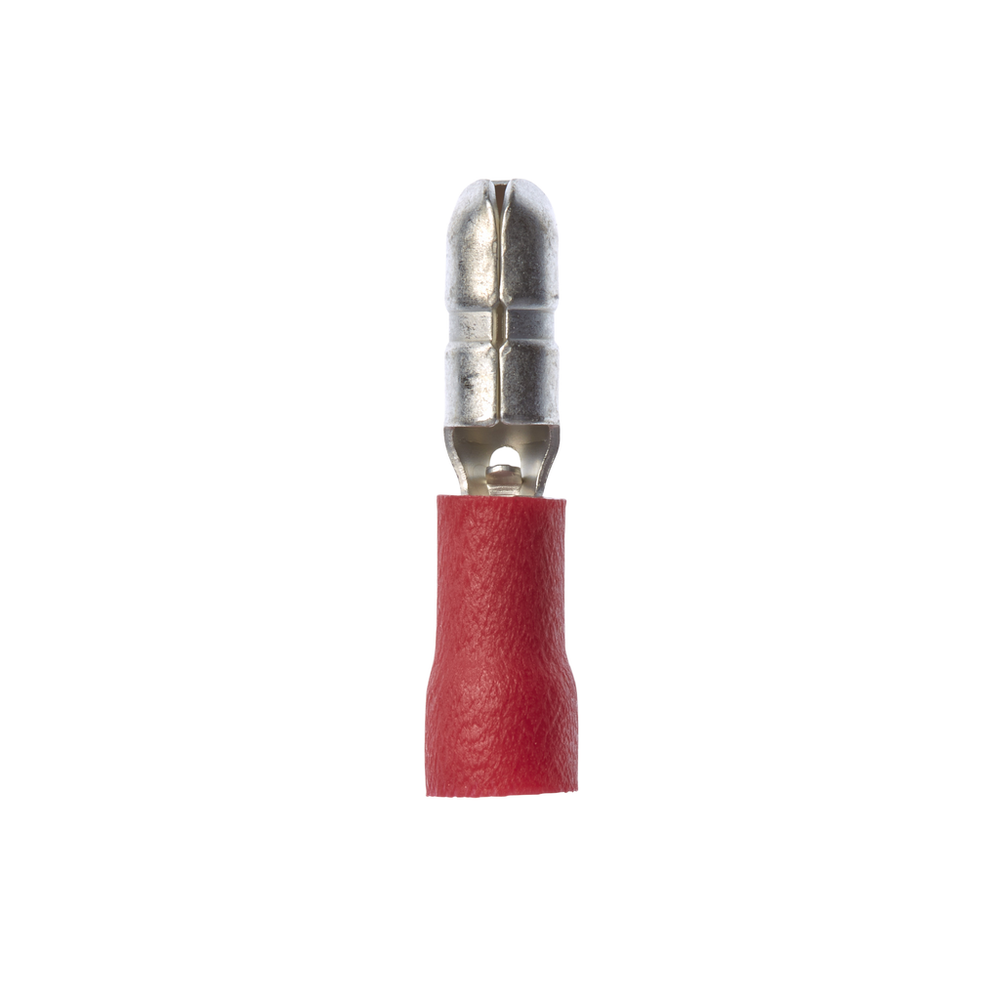

3M Scotchlok Male Disconnect, Vinyl Insulated Butted Seam Bullet Style MVU18-156DMK-A, 1000/Case

Sold As: 1000-Pack
SKU: 7100165175
MPN: 7100165175
Lead Time: 8 working days.
UPC: 00051138980948
3M ID: 80611444391
5 Digit UPC: 98094
Country of Origin: Taiwan
Manufacturer: 3M
$267.15 ($0.27 / Count)
Hurry up! Current stock:
Product Description
3M Scotchlok Vinyl Insulated Butted Seam Bullet-Style Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The snap plug has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.3M Scotchlok Vinyl Insulated Butted Seam Bullet-Style Male Disconnect attaches to the mating part with a tongue that slips over the female tab. The snap plug has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve. The polyvinyl chloride sleeve serves to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. It has an abrasion-resistant, flared, vinyl-sleeve insulation which ensures easy crimping. RoHS 2011/65/EU Compliant.

Extra Details

  • 1000/case
  • Accommodates wire sizes 22 to 18 AWG
  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Mates with 0.156-in wide female tab
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • This male disconnect terminal offers excellent holding force
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Data Sheet

  1. Tech Data Sheet
  2. Safety Data Sheet
