Bessey Tools

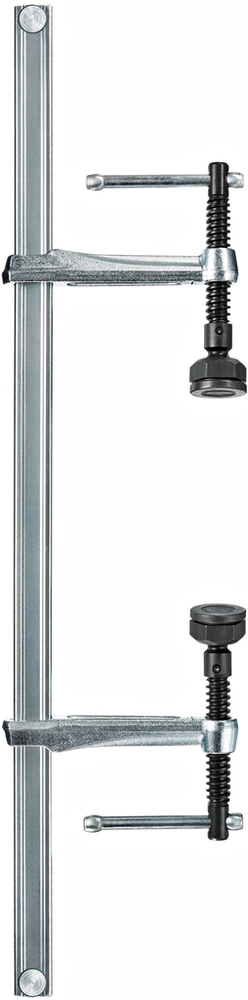

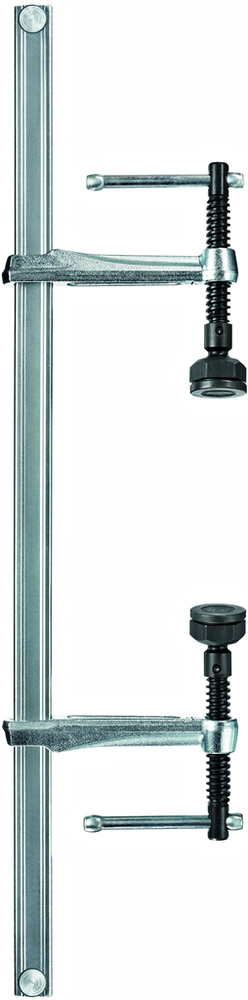

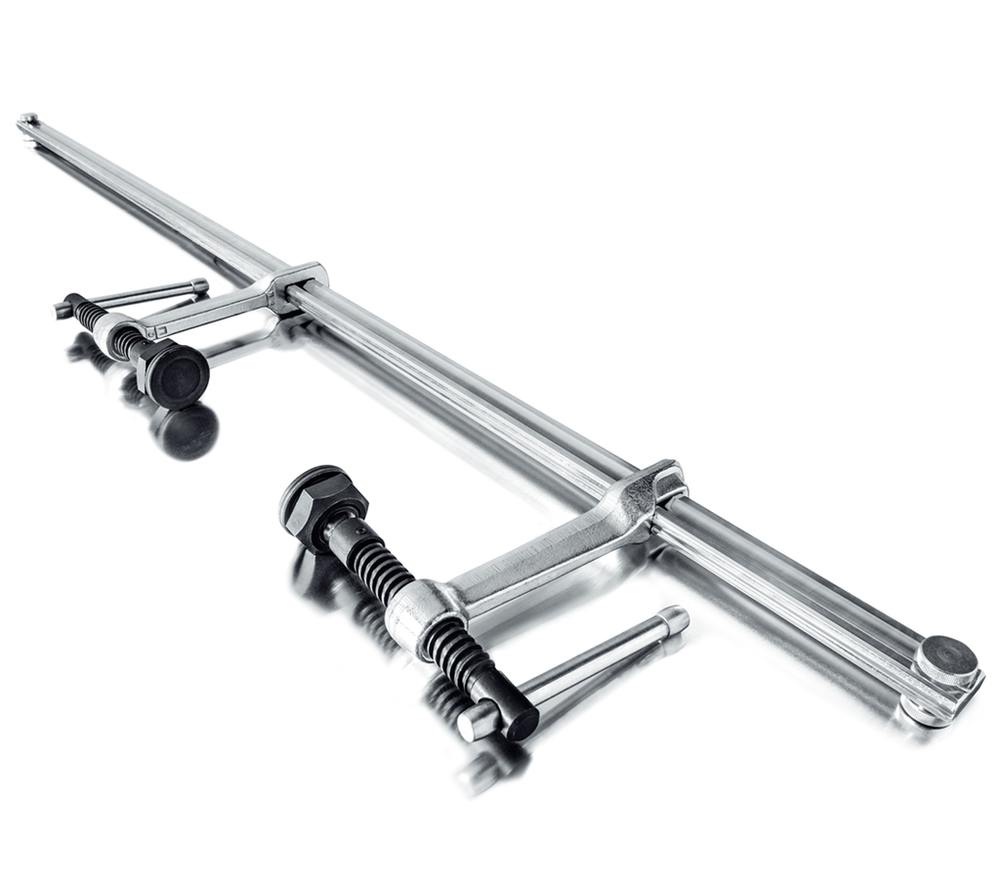

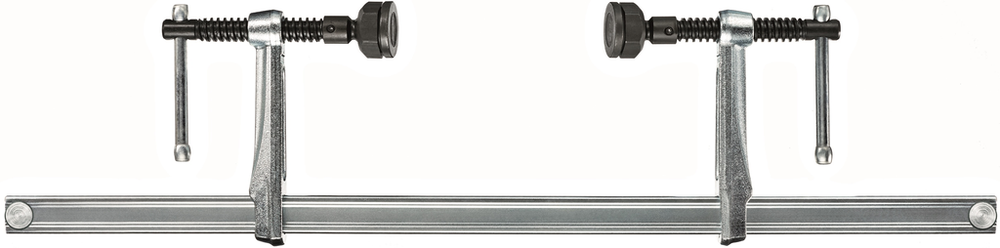

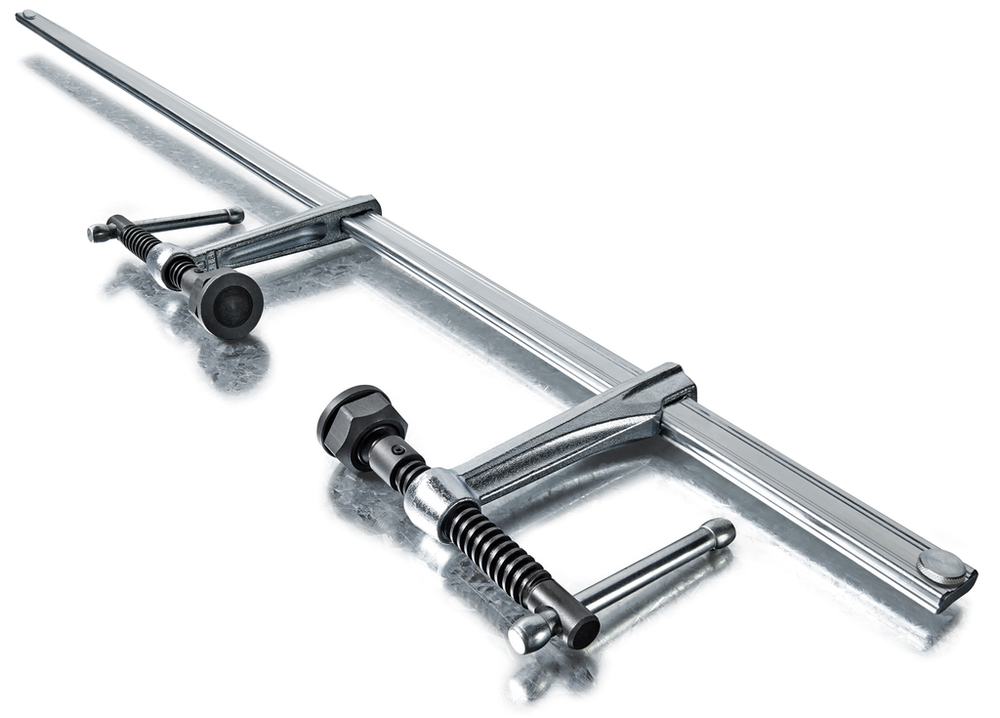

Double Force Clamp, 60 Inch Capacity, 4-3/4 Inch Throat Depth

SKU: SLV150M
Stock Item: Typical lead time for Bessey Tools products is 2-3 weeks.
UPC: 788502201612
Jaw width: 1.5
Throat Depth: 4.75
Capacity: 60
Clamping Force: 1450
Min. Gap: 13.5
Max. Spread: 68
Color: Bright Zinc Plated
$157.28 each
Hurry up! Current stock:
Product Description

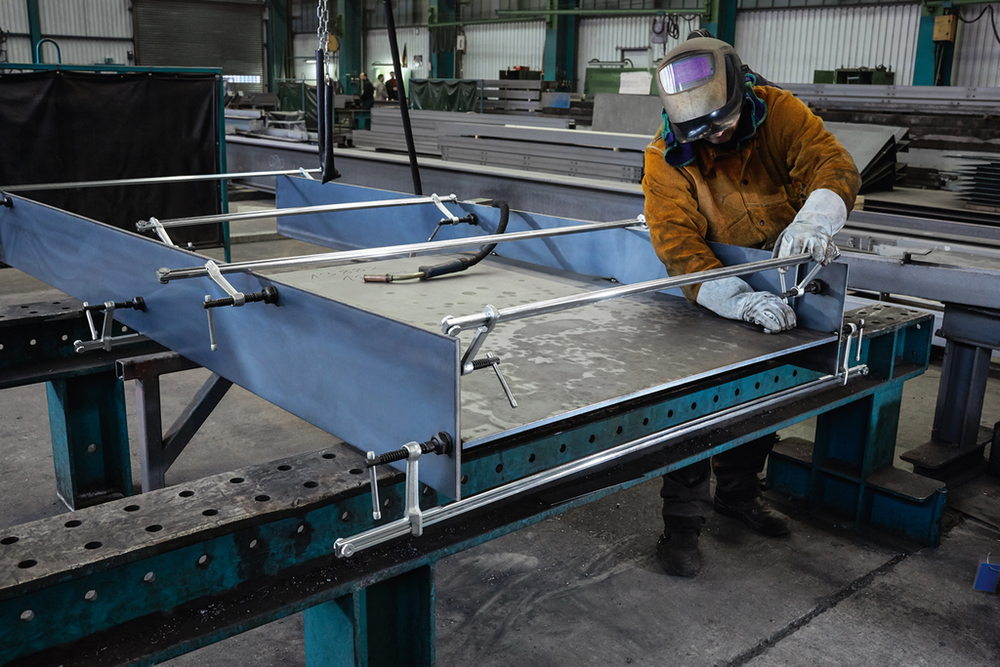

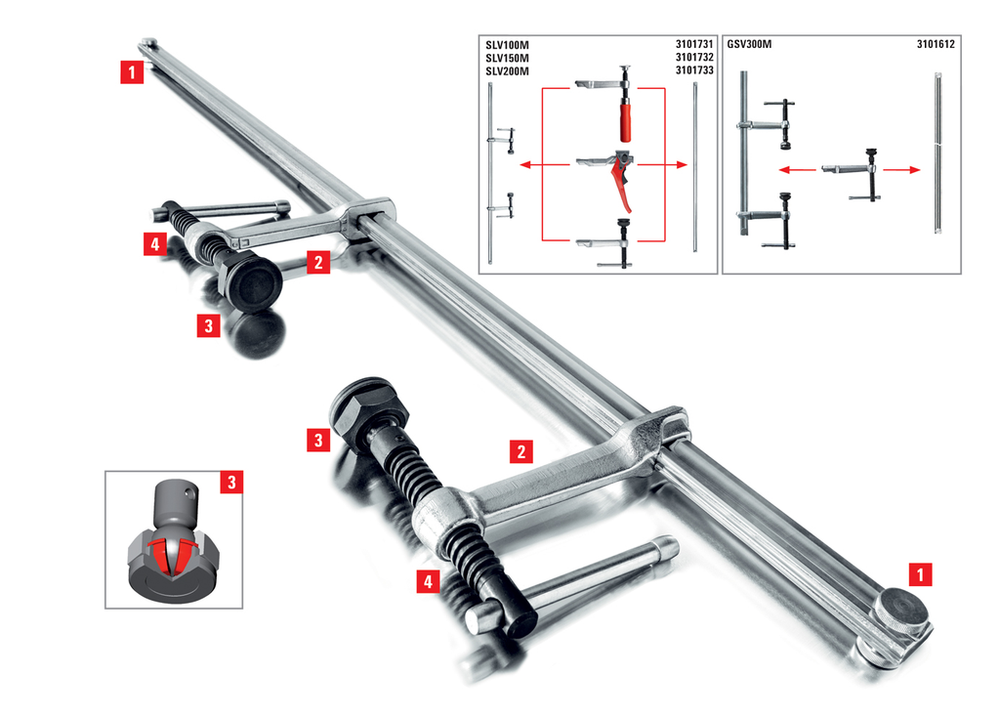

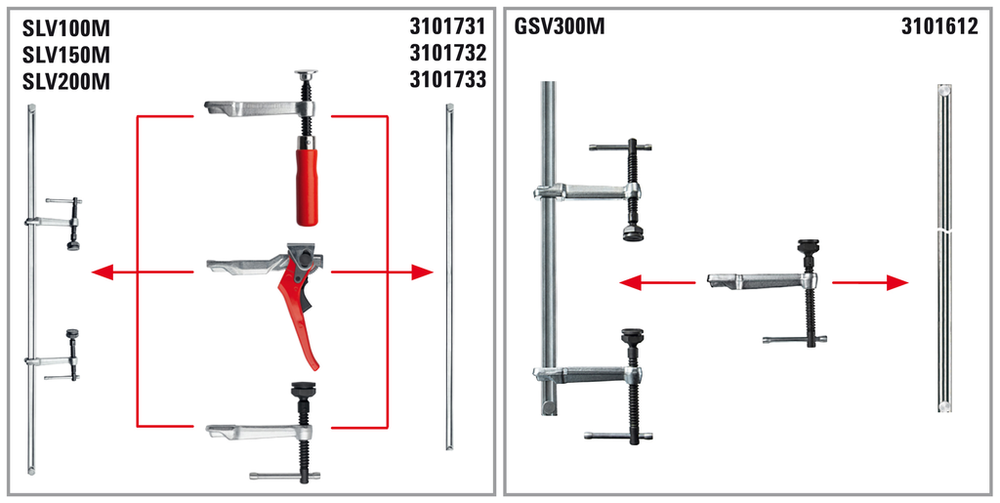

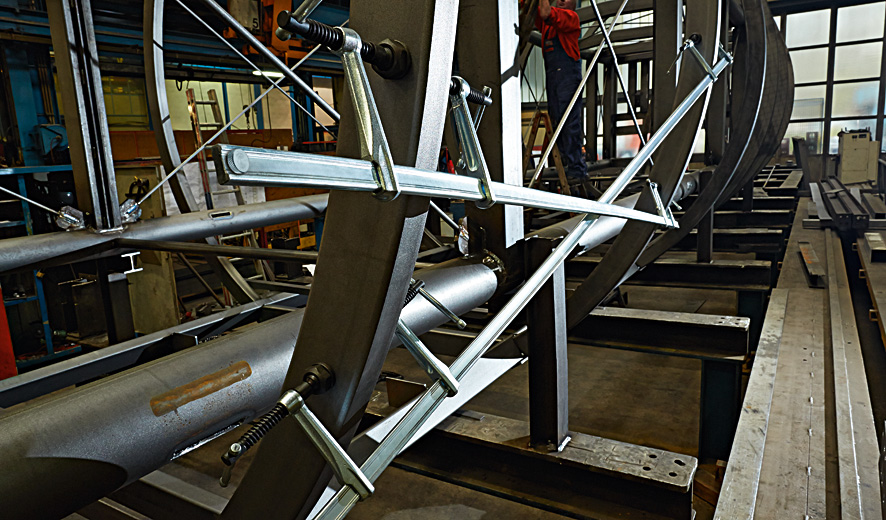

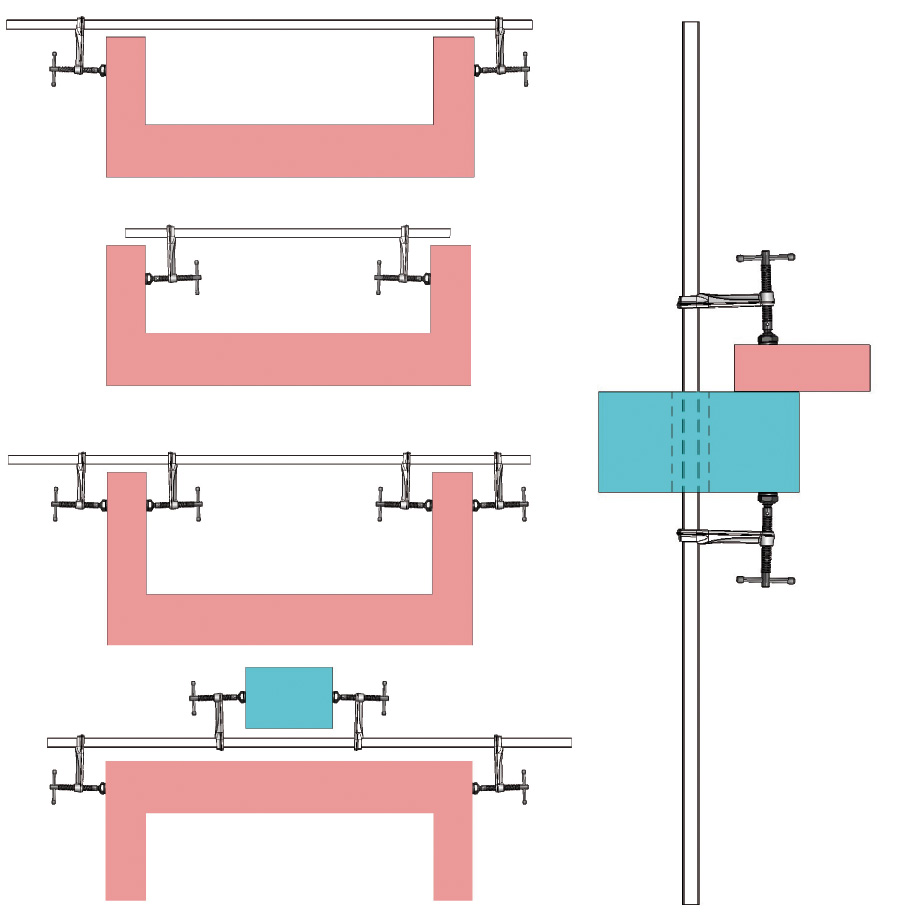

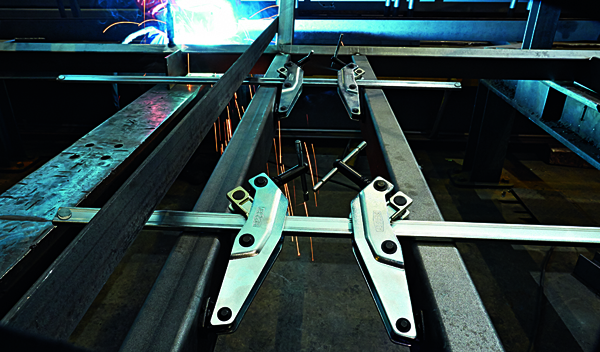

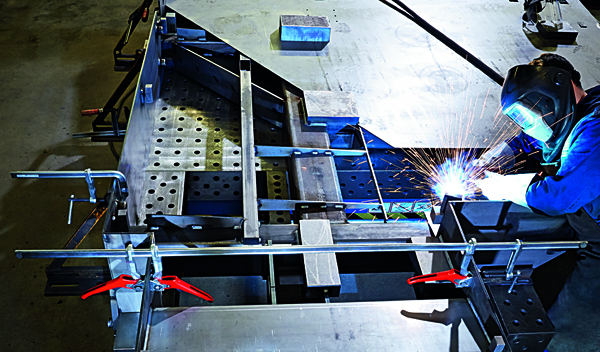

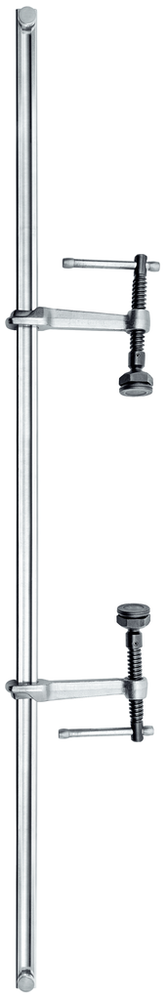

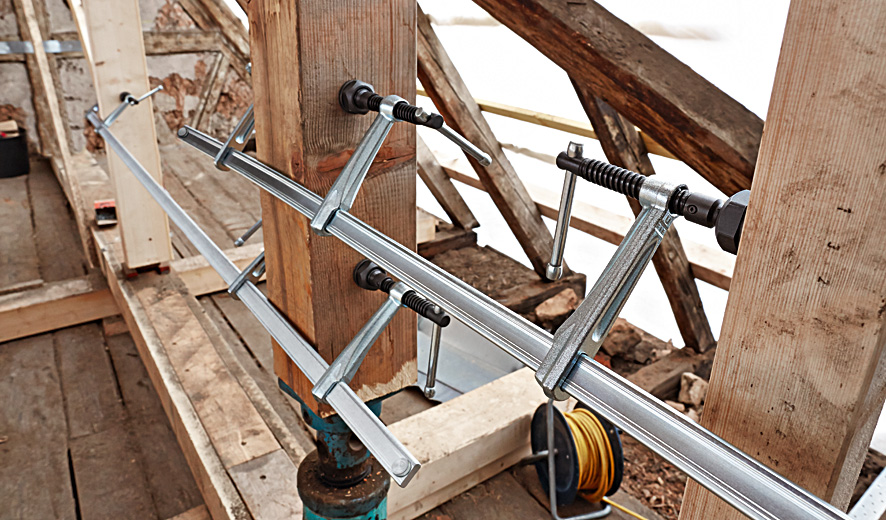

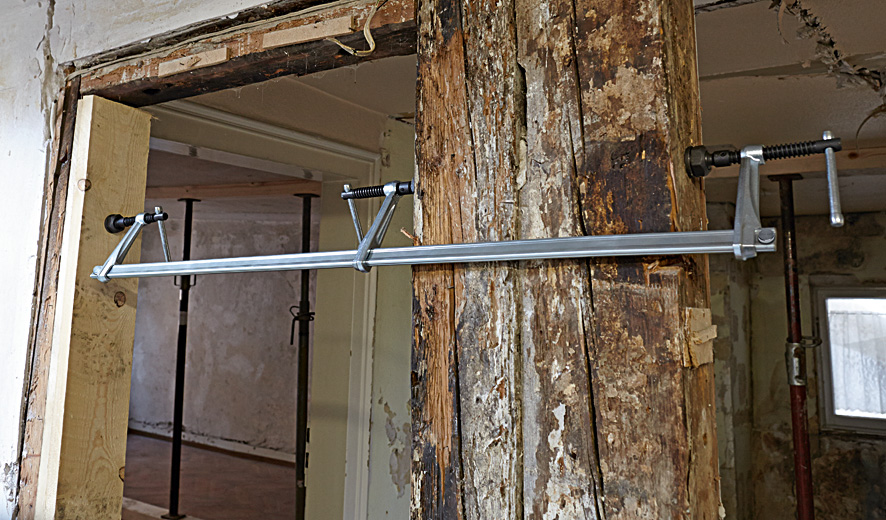

The modular concept of the "Double Force" clamping system allows for an incredibly wide range of applications. There are 2 different rail cross sections available, SLV models are 27 x 13 mm (1 1/16" x 1/2"); the GSV model has a 30 x 15 mm (1 3/16" x 5/8") profile for high clamping forces. Clamping widths range from 16 to 118 In. The rail end slide stops can be removed without tools. This allows for quick changes to the clamping set up. You can easily reverse the sliding arms for spreading or add extra sliding arms for clamping multiple pieces. Create custom assembly jigs for large assemblies quickly & easily. This versatility makes creating custom setups even for just one time use an economical prospect. SLV sliding arms available in 3 different styles, all with a 4-3/4 inch throat depth. GSV sliding arms all have spindles with sliding T-bar handles & are equipped with heavy duty MorPads for maximum clamping force. The standard GSV300M clamp sliding arms have a throat depth of 5-1/2 inches. There are also 4-3/4 & 7-1/2 inch throat depth versions available. The clamping system's flexibility means numerous applications can be handled by the various combinations of rails and sliding arms. Clamp more with less using this unique BESSEY clamping system. BESSEY. Simply better.

Extra Details

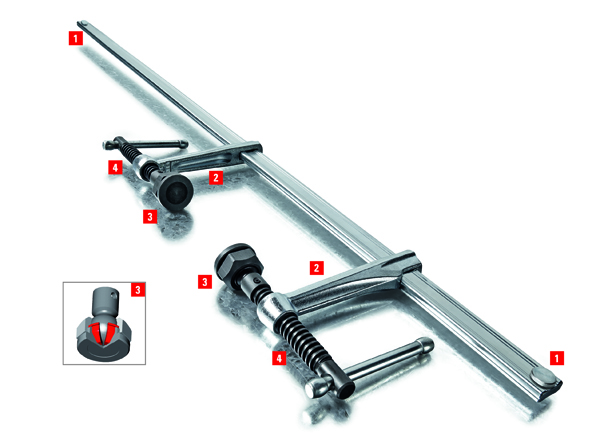

  • Unique BESSEY MorPad tilts to 35° — easily removed for maintenance or replacement

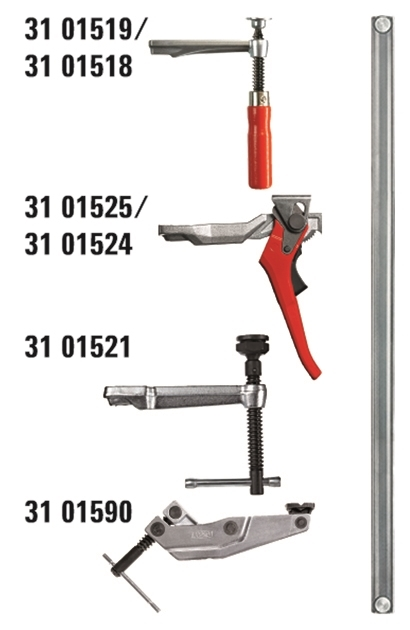

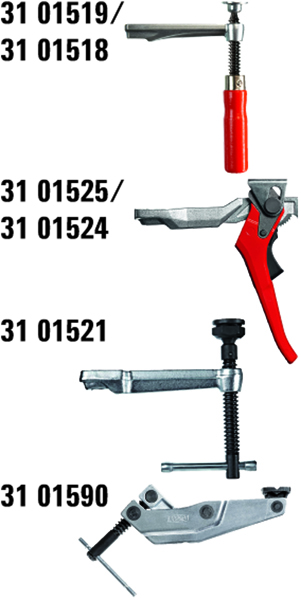

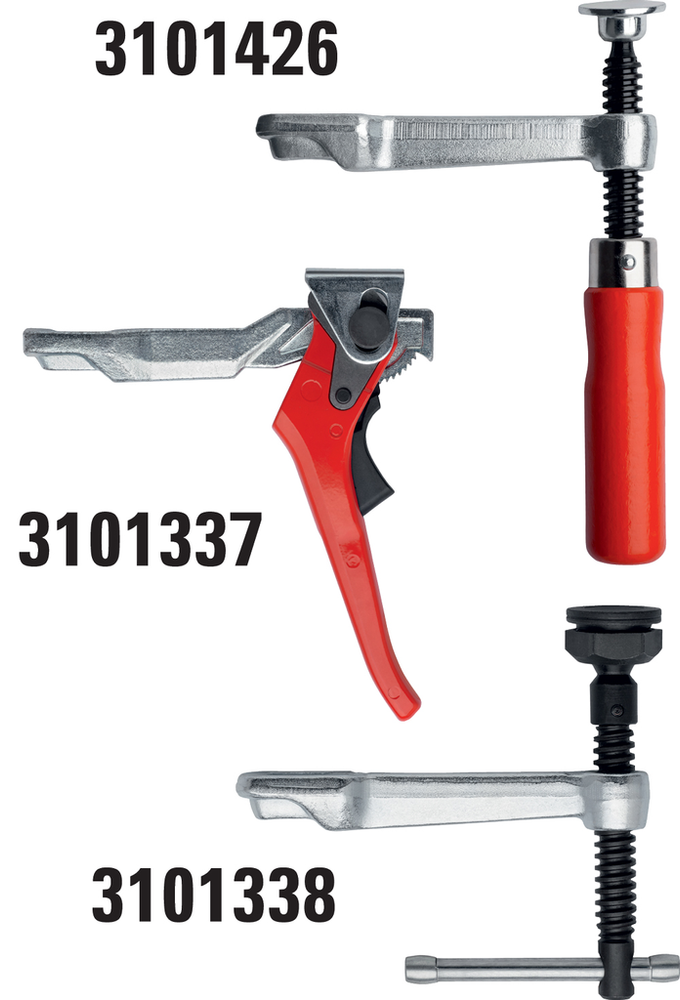

  • Replacement arms, spindles and MorPads are available as well as many optional sliding arm assemblies
  • Rails are drawn, heat treated, tempered and quenched under rigid controls in BESSEY's own steel plant
  • Heat treated, high carbon ACME threaded screw is resistant to weld spatter

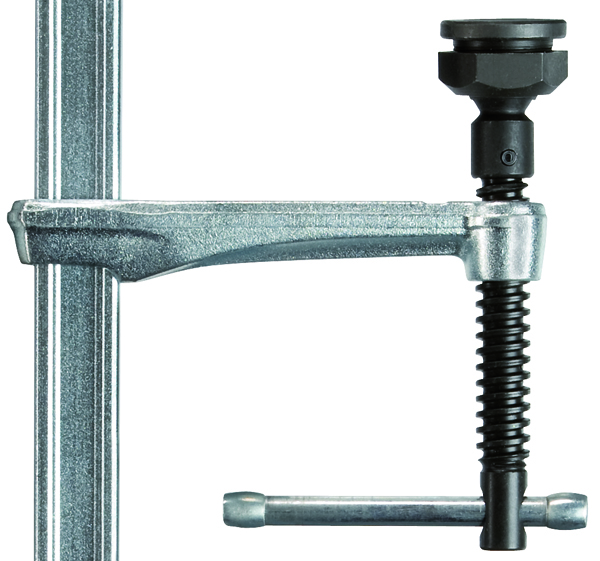

  • Drop forged, electro-galvanized steel sliding arm
  • Steel sliding T-bar handle
  • Replacement arms, spindles and MorPads are available as well as many optional sliding arm assemblies
